OGP EVOLVE SmartProfile
Empower your engineering and manufacturing processes.
Geometric Dimensioning & Tolerancing (GD&T) software that seamlessly integrates data from any measuring system and CAD data to produce reliable results that adhere to multi-tier tolerances and comply with ISO and ASME standards.
OGP EVOLVE SmartProfile

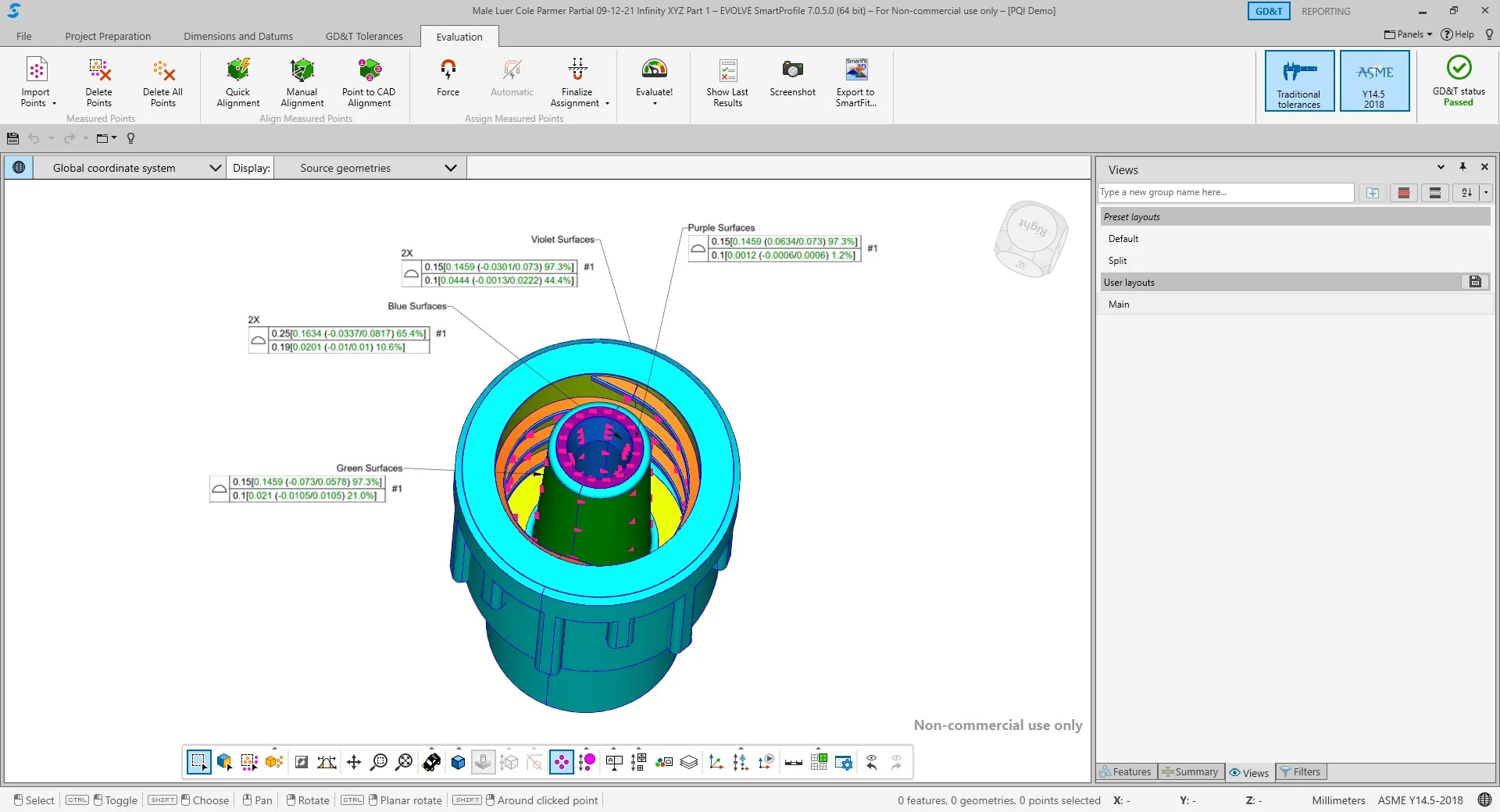

- SmartProfile provides a single-analysis tool for producing GD&T results using CAD data and measured points from any 2D or 3D measurement system. The standout feature of EVOLVE SmartProfile is its ability to provide real-time data visualization during the profiling process for immediate insights into your measurement data.
EVOLVE SmartProfile Viewer
- The SmartProfile viewer is provided at no charge and allows for viewing and reporting existing SmartProfile projects.
Key Features:
- Compatible with industry-standard CAD file formats including STEP, IGES, DXF and QIF
- Eliminates results variability from using different metrology software
- Improves production by quickly assessing part tolerances and processes
- Accepts point-cloud data from CMM, laser scanner, CT and other devices
- Evaluates the entire GD&T project in one click, eliminating results variability from different algorithms and human interpretations.
OGP EVOLVE Suite
EVOLVE Design - GD&T Validation
EVOLVE Manufacturing - GD&T Failure Analysis
EVOLVE SmartProfile - GD&T Evaluation
EVOLVE SPC - Data Visualization
Request a Demo
EVOLVE Design
Helps and guides Designers apply GD&T in CAD models correctly.
EVOLVE Manufacturing
Identifies systematic errors and minimizes out of tolerance conditions.
EVOLVE SmartProfile
Evaluates measurement data and CAD models for GD&T compliance.
EVOLVE SPC
Visualize Statistical Process data against 3D CAD models for easy interpretation.
PC-DMIS GD&T
Robust Support for Data Collection and Analysis
Versatile inspection software designed to grow with your organization that integrates seamlessly with a variety of technologies from tactile probes to laser scanners. PC-DMIS Geometric Tolerance (GeoTol) capabilities fact check datums and feature type control frames to ensure accuracy and compliance to the ISO 1101:2017 and ASME Y14.5 - 2018 standards.
PC-DMIS GD&T

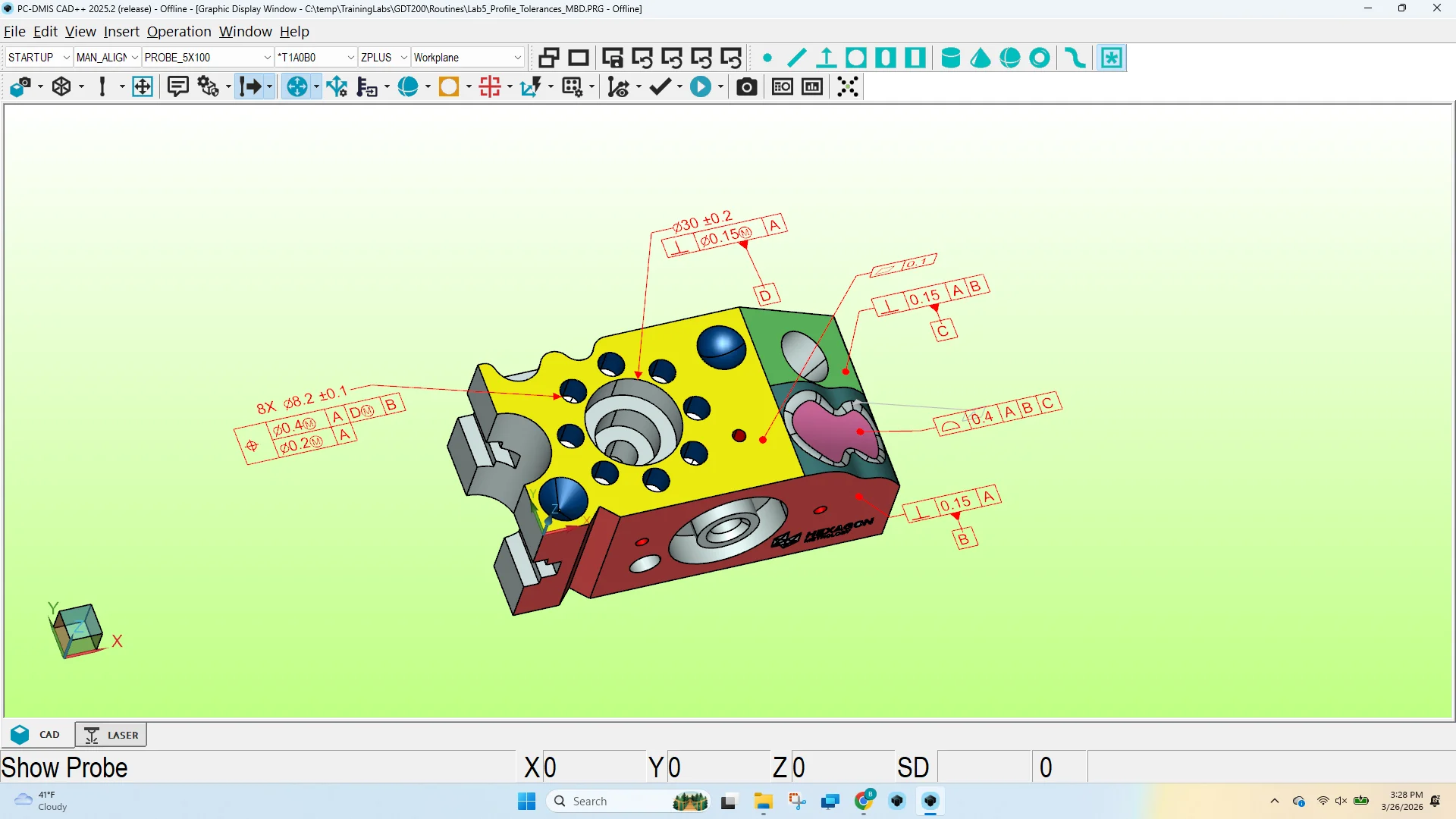

- PC-DMIS recognizes and imports GD&T tolerances on blueprints and CAD files into your measurement routine. It combines a comprehensive GD&T toolset and robust analysis capabilities into one powerful metrology measurement package.
- Compatible with:
- Bridge CMMs
- Portable Arms
- Laser Trackers
- Vision CMMs
Key Features:
- Built-in GD&T modules for an all-in-one data collection and analysis powerhouse
- Customizable GeoTol feature control frame
Polyworks Inspector
Take Control of Your Manufacturing Workflow
Improve traceability and repeatability with clear digital thread development for 3D data, accelerate design validation, and easily identify deviations in mesh, CAD, and point-cloud data to minimize costly design errors.
Polyworks Inspector
- Polyworks Inspector supports advanced datum reference frames and allows for analyzing deviation values and their exact locations to diagnose and resolve manufacturing and production challenges.
Key Features:
- Measure feature positions and orientations with ease

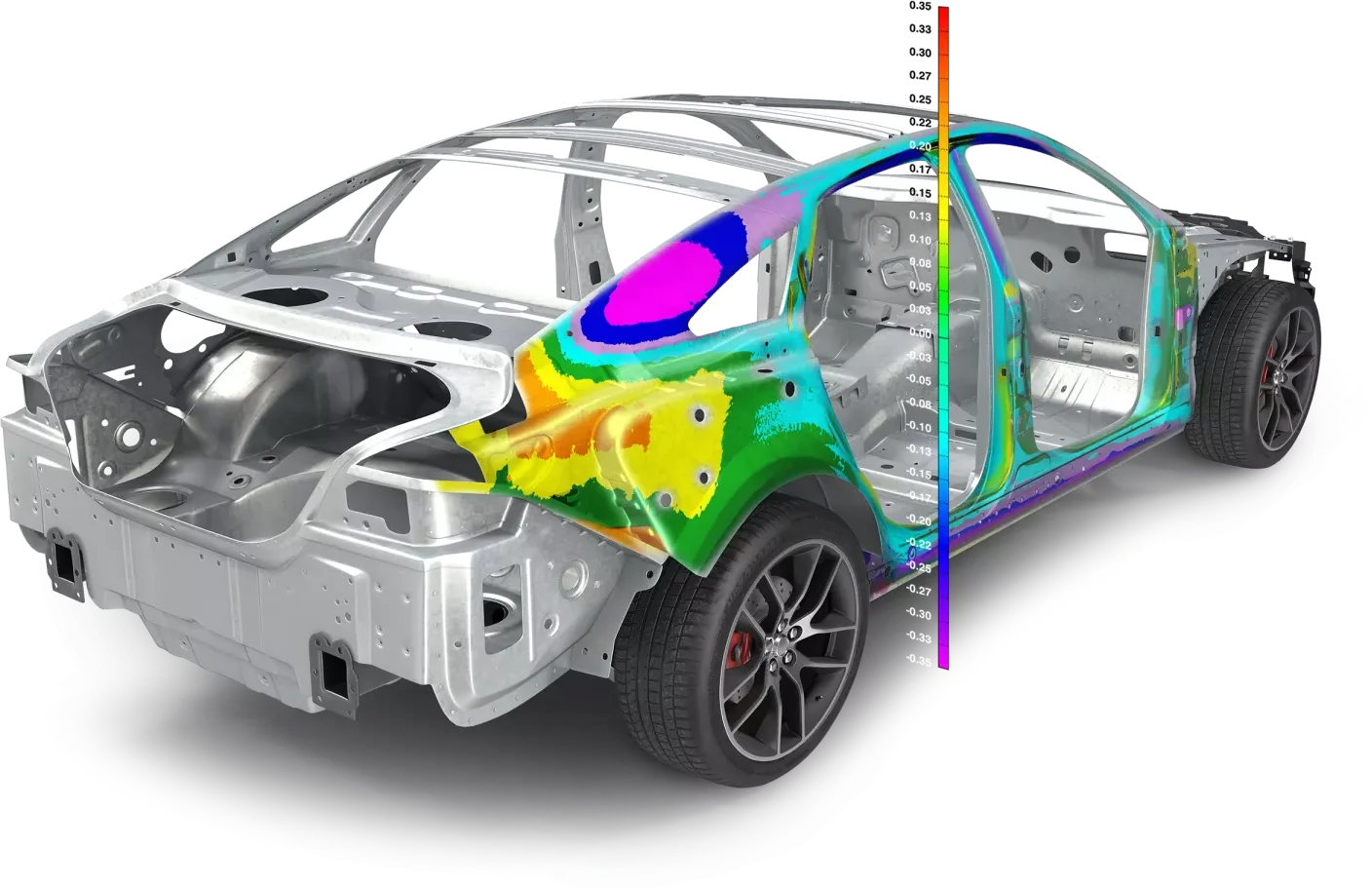

- Automatically evaluate free-form surface profiles for GD&T alignments
- Generate color-coded pass/fail reports for clear data visualization
Experience the precision and functionality of world-leading data collection and GD&T analysis software.
