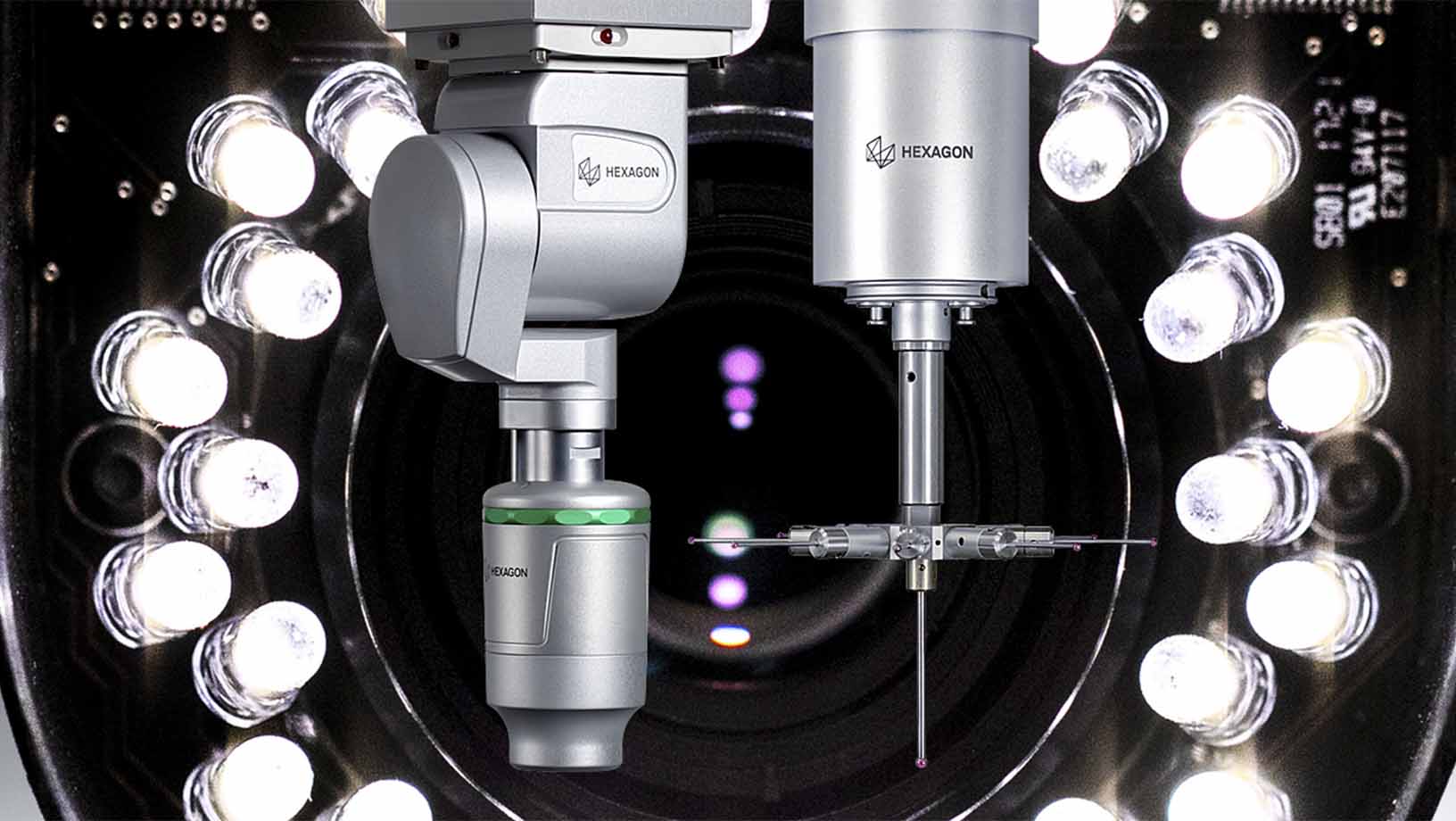

Optimize inspection performance with probing and sensor solutions that increase throughput, improve accuracy, & adapt to complex part geometries.
Combined with a sensor, the probe head forms the heart of your CMM. Efficient inspection and data capture relies on using the right probe head, significantly influencing the level of measuring speed and flexibility that can be achieved. Explore a variety of different types of probe heads designed to ensure manufacturers have the solutions most suited to their application needs.
Probe Heads for Coordinate Measuring Machines
Accurately position the probe and ensure part accessibility.

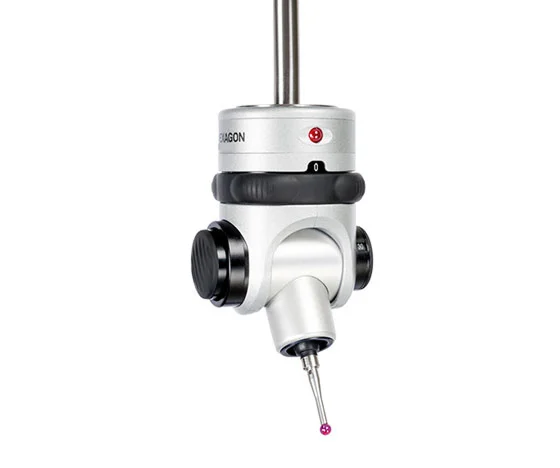

Manual
Superior durability, cost effectiveness, and unmatched flexibility.
- Indexing steps in 15° increments for 168 unique positions
- Easily lock, unlock, and rotate with one hand
- Compatible with touch trigger probes

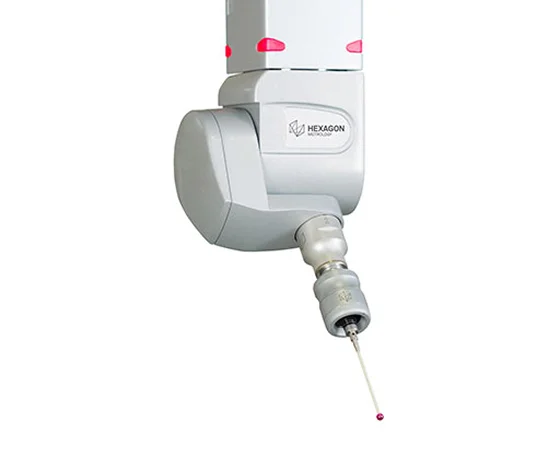

Automatic
High-speed operation and rotational torque with options for full multisensor capabilities.
- Available in 2.5°, 5°, and 7.5° indexing heads
- Mount directly on CMM or into the ram of the machine
- Optional configuration for scanning probe or laser scanner compatibility

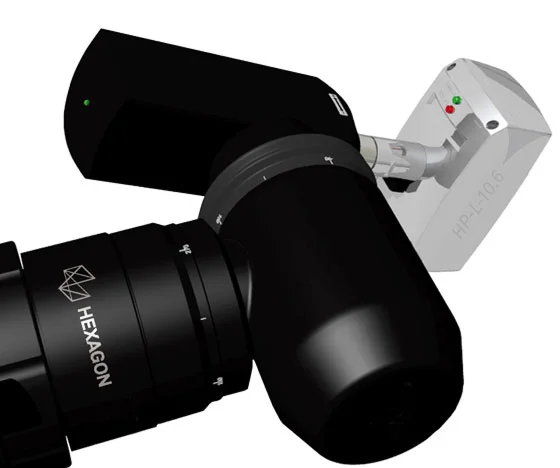

Continuous
Fast, accurate probe orientation in any probing direction in space.
- Continuous positioning of rotary axes in unlimited angular positions
- Compatible with standard extensions up to 600 mm in length
- Optional configuration for non-contact sensor integration
Tactile Probes | Scanning
Fast and Accurate Contour and Form Measurement
Collect more data in less time with scanning technology that delivers continuous surface measurement of complex surfaces and geometries with exceptional accuracy.

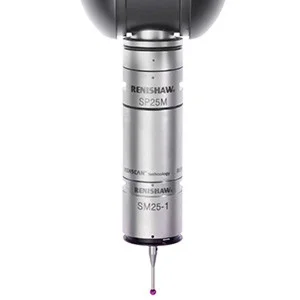

SP25M
The world’s most compact and versatile scanning probe system
- Isolated optical sensing and 3rd order polynomial compensation
- Two sensors in one - scanning and touch-trigger
- Ideal for profile and form measurement
- Compatible with motorized indexing heads

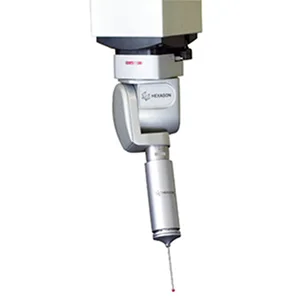

HP-S-X1 | HP-S-X1H
Rapidly and automatically collect thousands of data points for complete and precise feature evaluation.
- Single point probing and continuous scanning
- Unclamped probing in all axes
- TKJ kinematic join for automated probe changes
- Optional self-centering mode

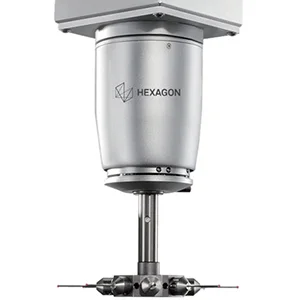

HP-S-X3
Capture continuous form and profile data from complex geometries with excellent precision.
- Single point probing and continuous scanning
- Large linear measuring range
- Stylus probing extensions up to 360 mm
- High resolution linear variable differential transducers

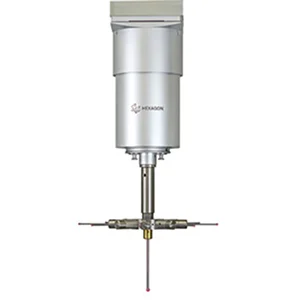

HP-S-X5
Fixed scanning probe optimized for measuring the tightest of tolerances.
- Simultaneous X, Y, & Z measurement for true 3D probing
- Motor-free design eliminates internal heat source
- Anti-collision and compensation systems
- Optional workpiece temperature sensor (WTS)
Tactile Probes | Touch Trigger
Fast and Repeatable 3D Measurement
Capture precise, single-point measurements for dimensional inspection, feature location, and geometric verification with robust sensors that outperform the competition.

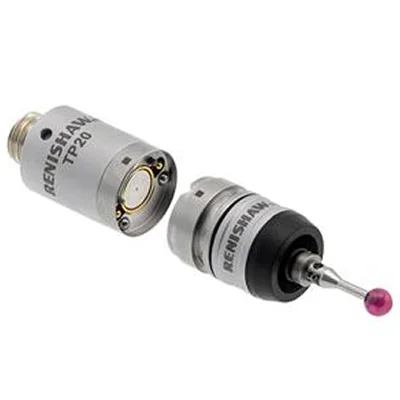

TP20
Compact module-changing probe for a range of stylus configurations
- Five- or six-way measurement capability
- Two-piece magnetic design for manual or automatic stylus changes
- Easily retrofit to existing interfaces, extensions, and adaptors
- Available in seven application-specific probe modules

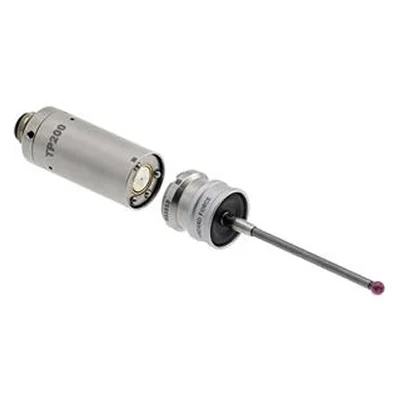

TP200
Compact module-changing probe for higher accuracy and longer life
- Six-way measuring capability
- Zero reseat errors
- No lobing effect
- Precision and repeatability powered by strain-gage technology

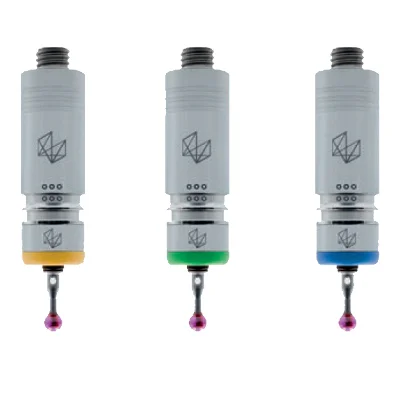

HP-THDe
High-speed measurement and point cloud density well-suited for tight tolerance applications.
- High-precision repeatability and low 3D form error
- Styli configurations of up to 100 mm
- Robust design and long module life
- Fast stylus and module changes

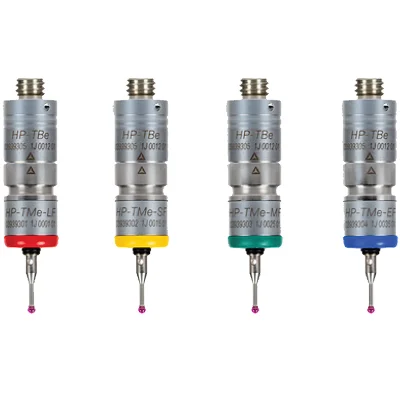

HP-TMe
Modular five way touch trigger probing and high accuracy measurement.
- Exchangeable probe body and detachable probing modules
- High repeatability and flexibility
- Easily retrofitted with a range of touch trigger controllers, extensions, and accessories
- Four stylus models available in different trigger force capabilities

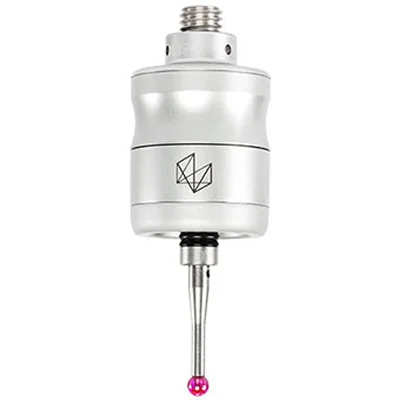

HP-T-RP
Built for precision in the harshest environments.
- Compatible with all Hexagon Bridge CMMs
- Ideally suited to work with robots and portable equipment
- Manual trigger force adjustment for optimized accuracy
Non-Contact Sensors
Enhance Your CMM’s Inspection Capabilities
When measuring complex parts with difficult-to-access features or sensitive surfaces, non-contact sensors provide essential flexibility and unparalleled speed.

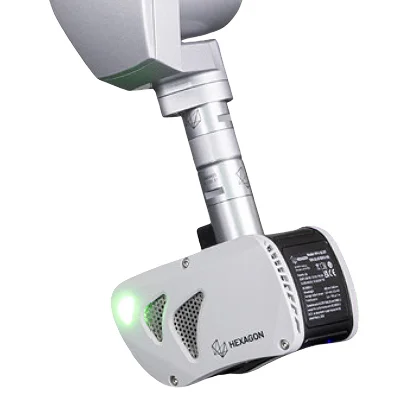

HP-L-10.10
Maximum performance for CMM point cloud creation.
- Measure complex workpieces and shiny surfaces
- Collect 600,000 points per second with probing form error of 8um
- Visual guide, work distance indicator LED, flexible standoff
- Variable scanning speed or built in camera for live stream measurement

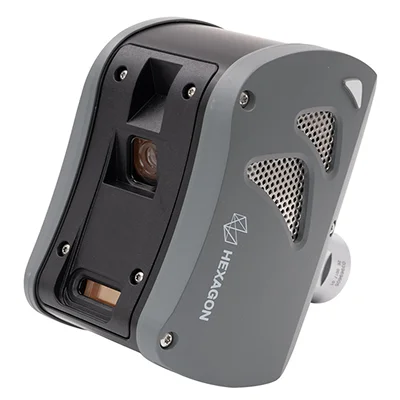

HP-L-10.10 LITE
Affordable entry point to creating point clouds and efficient measurement routines.
- High-speed measurement without high-end price point
- Concentrated core laser scanning functions
- Capture complete surface data of a part

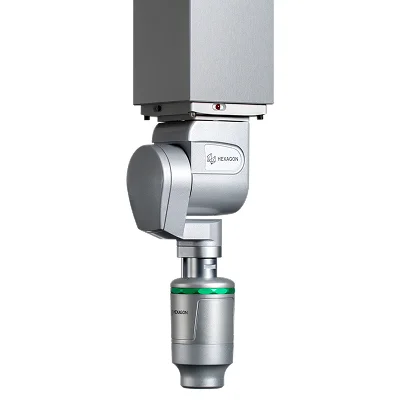

HP-OW
Versatile measurement possibilities powered by chromatic white-light spectroscopy
- ±30° acceptance angle
- Nanometric resolution
- Available in three sizes for tailored measurement range and working distance
- Optional automatic sensor changes capabilities

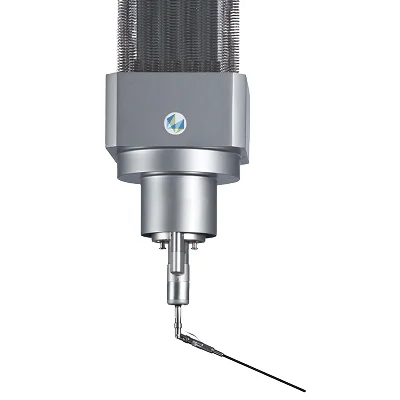

HP-O FLEX
Interferometic optical technology combined with the flexibility of an automatic indexing probe head.
- Excellent speed, precision, and part access
- Index in steps of 2.5° for up to 12,240 unique positions
- High-speed operation and high rotational torque

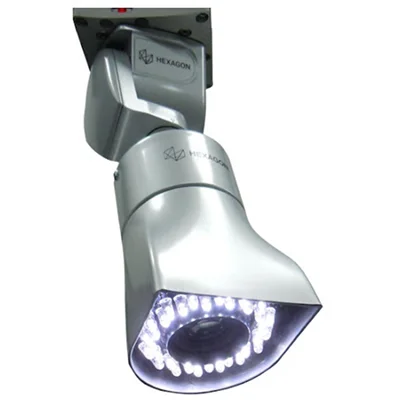

HP-C-TS5.10
Measure small features, sensitive components, and deliver throughput faster than probing.
- High-definition camera and built-in illumination system
- Measure features too small for tactile probing
- Working distance of 110 mm with two zoom options
- Compatible with HR-R probe changer rack
Unlock the Full Potential of Your CMM
From simple feature inspection to complex freeform measurement, we’ll help you find the solution that delivers the speed, accuracy, and data fit for your application.
